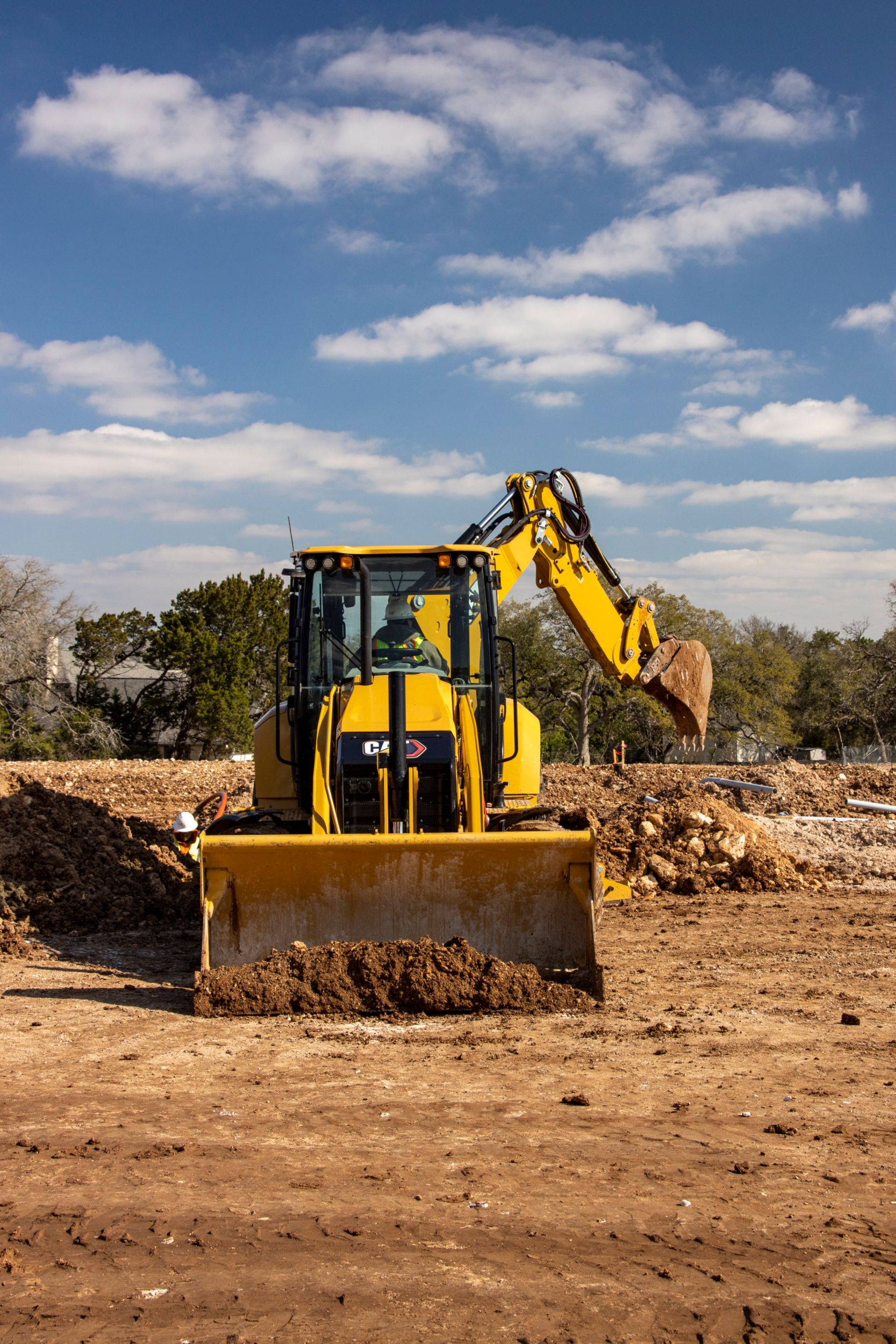

416 Backhoe Loader

Maximum Gross Power – SAE J1995: 2014

75 hp (56 kW) / 96 hp (71 kW)

Engine Model

C3.6 55 kW (74 hp) Electronic Turbo Intercooled

Emissions

Engine meets Tier 4 Final/Stage V emission standards.

Ratings at 2,200 rpm – Gross Power SAE J1995

75hp

Ratings at 2,200 rpm – Gross Power ISO 14396

74hp

Net Power Rating at 2,200 rpm – SAE J1349

70hp

Net Power Rating at 2,200 rpm – ISO 9249

69hp

Net Peak Power Rating @ 2,200 rpm – SAE J1349

69hp

Net Peak Power Rating @ 2,200 rpm – ISO 9249

69hp

Dimensions – Bore

3.86in

Dimensions – Stroke

4.72in

Displacement

220in³

Net Torque Rise – 1,400 rpm – SAE J1349

85%

Net Torque Rise – 1,400 rpm – SAE J1349

308ft-lb

Power Rating Conditions – No De-Rating Required Up To

10000ft

Dig Depth – Standard

14ft

Operating Weight – Maximum

24251lb

Operating Weight – Estimated*

16532lb

Operating Weight – Maximum – ROPS Capacity

24251lb

Cab – ROPS/FOPS

306lb

Auto-Shift Transmission

269lb

Ride Control

33lb

Air Conditioning

99lb

All-Wheel Drive

STD (N/A)

MP Bucket (0.96 m3/1.25 yd3) – With Fold-Over Forks

2017lb

MP Bucket (0.96 m3/1.25 yd3) – Without Fold-Over Forks

1642lb

Loader QC

540lb

Extendible Stick (excludes ft. counterweight)

613lb

Counterweights, base

256lb

Counterweights, base – Stackable, one

529lb

Counterweights, base – Maximum

1014lb

Note

*Machine configuration: standard stick hoe, OROPS canopy, 4WD standard shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterwei

Engine Model

C3.6 70 kW (96 hp) Electronic Turbo Intercooled

Emissions

Engine meets Tier 4 Final/Stage V emission standards.

Ratings at 2,200 rpm – Gross Power SAE J1995

96hp

Ratings at 2,200 rpm – Gross Power ISO 14396

94hp

Net Power Rating at 2,200 rpm – SAE J1349

85hp

Net Power Rating at 2,200 rpm – ISO 9249

85hp

Net Peak Power Rating @ 2,200 rpm – SAE J1349

85hp

Net Peak Power Rating @ 2,200 rpm – ISO 9249

85hp

Dimensions – Bore

3.86in

Dimensions – Stroke

4.72in

Displacement

220in³

Net Torque Rise – 1,400 rpm

43%

Net Torque Rise – 1,400 rpm – SAE J1349

292lb/ft

Power Rating Conditions – No De-Rating Required Up To

10000ft

Power Shuttle Transmission – Standard – Forward – 1st

3.4mile/h

Power Shuttle Transmission – Standard – Forward – 2nd

5.7mile/h

Power Shuttle Transmission – Standard – Forward – 3rd

13mile/h

Power Shuttle Transmission – Standard – Forward – 4th

23mile/h

Power Shuttle Transmission – Standard – Reverse – 1st

3.4mile/h

Power Shuttle Transmission – Standard – Reverse – 2nd

5.7mile/h

Power Shuttle Transmission – Standard – Reverse – 3rd

13mile/h

Power Shuttle Transmission – Standard – Reverse – 4th

23mile/h

Power-Shift Transmission – Optional – Forward – 2nd

5.8mile/h

Power-Shift Transmission – Optional – Forward – 3rd

12mile/h

Power-Shift Transmission – Optional – Forward – 4th

25mile/h

Power-Shift Transmission – Optional – Forward -1st

3.7mile/h

Power-Shift Transmission – Optional – Reverse – 1st

3.7mile/h

Power-Shift Transmission – Optional – Reverse – 2nd

7.6mile/h

Power-Shift Transmission – Optional – Reverse – 3rd

17mile/h

Note

Travel speeds of backhoe loader at full throttle, when equipped with 500/70-24 rear tires.

Front Axle, AWD – Static

26455lb

Front Axle, AWD – Dynamic

20233lb

Rear Axle – Static

28660lb

Rear Axle – Dynamic

15432lb

Type

Closed Center

Pump Type

Variable-flow, Axial Piston

Pump Capacity at 2,200 rpm

34.9gpm

System Pressure – Backhoe

3336psi

System Pressure – Loader

3336psi

Type

Front Wheel Steering

Power Steering

Hydrostatic

Cylinder

One Double-Acting

Bore

2.6in

Stroke

4.2in

Rod Diameter

1.6in

Axle Oscillation

11°

Turning Circle – (inner wheel not braked) – Outside Front Wheels

26.92ft

Turning Circle – (inner wheel not braked) – Outside Widest Loader Bucket

35.25ft

Cooling System with Air Conditioning

4.8gal (US)

Engine Oil – With Filter

2.4gal (US)

Diesel Exhaust Fluid (DEF)

5gal (US)

Fuel Tank

42.3gal (US)

Transmission – Power Shuttle – AWD

4.8gal (US)

Transmission – Power Shift – AWD

5gal (US)

Rear Axle

4.2gal (US)

Rear Axle – Planetaries

0.4gal (US)

Front Axle (AWD)

2.9gal (US)

Front Axle (AWD) – Planetaries

0.2gal (US)

Hydraulic System

25.1gal (US)

Hydraulic Tank

11.1gal (US)

Recyclability

92%

Standard Equipment
- Air cleaner
- Alarm, back-up
- Audible system fault alarm
- Backhoe controls, mechanical two lever
- Battery, maintenance-free, 850 CCA
- Battery disconnect switch
- Boom transport lock
- Brace, lift cylinder
- Brake, parking, mechanical
- Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
- Bucket level indicator
- Canopy, ROPS/FOPS
- Coat restraint
- Coolant/antifreeze, extended life
- Counterweight, bumper
- Dome light (cab only)
- Diagnostic port for engine
- Differential lock, loader joystick
- Drink holders, two
- Engine, Cat C3.6 (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
- Engine enclosure, sound suppression, removable side panels
- Face seals, O-ring
- Fan, suction and guard
- Fast reversing shuttle, all gears
- Fenders, rear
- Filters, spin-on: fuel, engine oil, transmission oil, water separator
- Filters, bowl and cartridge: hydraulic fluid
- Flashing hazards/signal lights
- Floor mat
- Four wheel drive
- Four wheel drive shaft guard
- Fuel tank, fully enclosed
- Fully hinged front grill for cooling package cleaning access
- Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
- Ground level fuel fill and DEF fill
- Halogen lights, working (4 front, 4 rear)
- High ambient cooling package
- Hood lock, inside cab
- Hydraulic hose, XT^™
- Hydraulic oil cooler
- Hydraulic oil level sight gauge
- Hydraulic valves, loader 2 function
- Hydraulic valves, backhoe 5 function
- Hydraulics, load sensing with variable displacement piston pump
- Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
- Instrument panel lights
- Key start/stop system
- LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
- Loader, self-leveling, return-to-dig and transmission disconnect switch
- Loader, single tilt
- Mechanical two lever controls
- Mirror, interior, rearview
- Open circuit breather
- Power receptacle, 5 volt USB, 1 internal
- Power receptacle, 12 volt, 2 internal, 1 external
- Power steering, hydrostatic
- Product Link^™, cellular, network manager
- Product Link, satellite, network manager
- Seat belt, retractable, 51 mm (2 in)
- Socket, two roof
- Stabilizer shoes, street
- Steering column, tilting
- Steering knob
- Seat, air suspension, vinyl cover, with armrest
- Starting system, glow plugs
- Storage compartment, lockable
- Storage tray
- Stop and tail lights
- Swing transport lock
- Tilt steering column
- Tires
- Toolbox, external, lockable
- Torque converter
- Throttle, hand and foot, electronic
- Transmission, four speed, manual, syncromesh
- Transmission neutralizer switch
- Transport tie-downs
- Vandalism locks, four
- Warning horn, electric

Optional Equipment
- Auxiliary hydraulics, rear, adjustable flow
- Battery, additional, 850 CCA
- Brake, parking, Spring Applied Hydraulically Release (SAHR)
- Cab, standard
- Cold weather fuel (–30° C/–22° F)
- Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
- Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
- Fenders, front with integral steps
- Guard, boom protection plate
- Guard, stabilizer, rock
- Hydraulic valves, loader (3rd valve for MP or Quick Coupler)
- Hydraulic valves, backhoe (with 6th function)
- Hydraulic lines, combined function auxiliary
- Joystick controls: pilot operated, excavator style with pattern changer
- LED lights, working (4 front, 4 rear)
- Pattern changer, in cab
- Quick Coupler, hydraulic, dual lock
- Quick Coupler, manual, dual lock
- Quick Coupler, manual, pin lock
- Radio and CD player, Bluetooth^®
- Ride Control
- Rotating beacon, magnetic mount
- Seat, air suspension, fabric with armrest
- Seat belt, retractable, 75 mm (3 in)
- Security system, Bluetooth
- Security System, operator display
- Side mirrors, cab, external
- Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
- Stabilizer pads, grouser type
- Stabilizer pads, reversible
- Stick, extendible
- Transmission, 4 speed, powershift
- Vandalism protection, gauge cover
- Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
