301.7 CR Mini Hydraulic Excavator (CANOPY)

Back to Home

The image displayed does not reflect the exact machine specifications, including attachments represented in the image on this machine.

Exterior View
Interior View

301.7 (CANOPY)

ID Number M26791
Product Make CATERPILLAR
Serial Number 0JX700175
Availability In-Stock
Contact Us To Purchase View Specs Compare

You can only compare up to 3 items at once. Please remove an item to add another.

Credit
0 active viewers

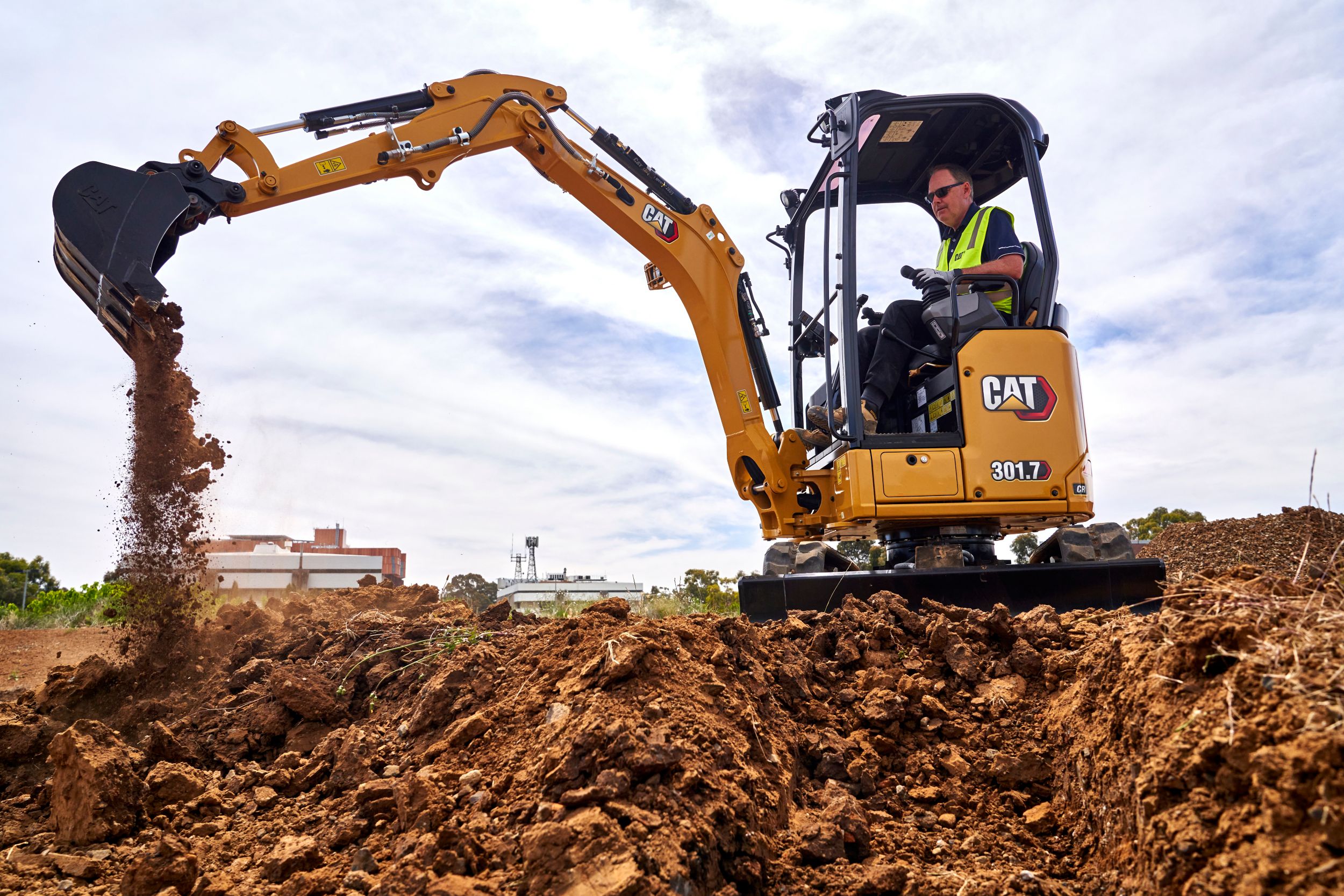

The Cat® 301.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Net Power
21hp
Engine Model
C1.1
Engine Power
21.6hp
Bore
3in
Stroke
3.2in
Displacement
69in³
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Operating Weight
4222lb
Minimum Operating Weight with Canopy*
3946lb
Maximum Operating Weight with Canopy**
4222lb
EU: CE Plate Weight***
4167lb
Note (1)
*Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.
Note (2)
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (3)
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Dig Depth
100in
Vertical Wall
74.4in
Maximum Reach - Ground Level
159.8in
Maximum Reach
162.6in
Maximum Dig Height
137.4in
Maximum Dump Clearance
98.8in
Boom In Reach
63.8in
Tail Swing
25.6in
Maximum Blade Height
10.6in
Maximum Blade Depth
10.4in
Boom Height - Shipping Position
40.9in
O/A Shipping Height
90.6in
Swing Bearing - Height
17.4in
O/A Undercarriage Length
62.6in
Overall Shipping Length*
141.3in
Boom Swing - Right
50°
Boom Swing - Left
65°
Track Belt/Shoe Width
9.1in
Track Width - Retracted
39in
Track Width - Expanded
51.18in
Minimum Ground Clearance Below Undercarriage
5.5in
Stick Length
45.7in
Note
*Overall Shipping Length depends on blade position during shipment.
Travel Speed - High
2.7mile/h
Travel Speed - Low
1.8mile/h
Maximum Traction Force - High Speed
2675.2lbf
Maximum Traction Force - Low Speed
4136.5lbf
Ground Pressure - Minimum Weight
4psi
Ground Pressure - Maximum Weight
4.4psi
Gradeability - Maximum
30 degrees
Pump Flow at 2,400 rpm
17.4gpm
Operating Pressure - Equipment
3553.4psi
Operating Pressure - Travel
3553.4psi
Operating Pressure - Swing
2132.1psi
Auxiliary Circuit - Primary - Flow
8.7gpm
Auxiliary Circuit - Primary - Pressure
3553.4psi
Auxiliary Circuit - Secondary - Flow
3.7gpm
Auxiliary Circuit - Secondary - Pressure
3553.4psi
Digging Force - Stick - Standard
2135.7lbf
Digging Force - Stick - Long
1865.9lbf
Digging Force - Bucket
3641.9lbf
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Dig Depth
92.5in
Vertical Wall
70.9in
Maximum Reach - Ground Level
153.5in
Maximum Reach
156.3in
Maximum Dig Height
135in
Maximum Dump Clearance
96.5in
Boom In Reach
64.2in
Tail Swing
25.6in
Maximum Blade Height
10.6in
Maximum Blade Depth
10.4in
Boom Height - Shipping Position
42.9in
O/A Shipping Height
90.6in
Swing Bearing - Height
17.4in
O/A Undercarriage Length
62.6in
Overall Shipping Length*
142.5in
Boom Swing - Right
50°
Boom Swing - Left
65°
Track Belt/Shoe Width
9.1in
Track Width - Retracted
39in
Track Width - Expanded
51.18in
Minimum Ground Clearance Below Undercarriage
5.5in
Stick Length
37.8in
Note
*Overall Shipping Length depends on blade position during shipment.
Average Exterior Sound Pressure (ISO 6395:2008)
93dB(A)
Note
European Union Directive “2000/14/EC”
Long Stick
22lb
Steel Tracks
110lb
Expandable Undercarriage
Standard
Heavy Counterweight
148lb
Machine Swing Speed
9.8r/min
Roll Over Protective Structure (ROPS)
ISO 12117-2:2008
Tip Over Protective Structure (TOPS)
ISO 12117:1997
Top Guard
ISO 10262:1998 (Level I)
Cooling System
1gal (US)
Engine Oil
1.2gal (US)
Fuel Tank
5.8gal (US)
Hydraulic Tank
4.8gal (US)
Hydraulic System
6.9gal (US)
Width*
39in
Height
8.9in
Note
*Expanded – 1300 mm (51 in)
Recyclability
95%
  • Engine
    • Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
    • Automatic Engine Idle
    • Automatic Engine Shutdown
    • Automatic Two Speed Travel
    • Fuel Water Separator
    • Power on Demand (not available in all regions)
    • Variable Displacement Piston Pump
    • Load Sensing/Flow Sharing Hydraulics
  • Hydraulics
    • Smart Tech Electronic Pump
    • Accumulator
    • Automatic Swing Brake
    • Auxiliary Hydraulic Lines
    • One and Two Way Auxiliary Flow
    • Continuous Auxiliary Flow
    • Auxiliary Line Quick Disconnects
  • Operator Environment
    • Tilt-up Canopy
    • Top Guard ISO 10262:1998 Level I
    • ROPS – ISO 12117-2:2008
    • TOPS – ISO 12117:1997
    • Machine 2-Point Lifting
    • Stick Steer Mode
    • Travel Cruise Control
    • Control Pattern Changer (optional in some regions)
    • Adjustable Wrist Rests
    • Washable Floor Mat
    • Travel Pedals and Hand Levers
    • Machine Security
    • Machine Security – Standard Key with Pass Code
    • Vinyl Non-Suspension Seat
    • Hydraulic Lockout – All Controls
    • Retractable High Visibility Seat Belt (75 mm/3 in)
    • Coat Hook
    • Cup Holder
    • Storage Pocket
    • Skylight
    • Mounting Bosses for Front
    • Signaling/Warning Horn
    • Boom Light, Halogen
    • Utility Space for Mobile Phone
    • Next Generation Color LCD Monitor (IP66)
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Hour Meter with Wake Up Switch
  • Undercarriage
    • Expandable Undercarriage
    • Rubber Belt (230 mm/9 in wide)
    • Dozer Blade
    • Dozer Blade Float
    • Hydraulic Track Adjusters
    • Tie Downs on Track Frame
  • Boom, Stick And Linkages
    • One Piece Boom (1780 mm/70 in)
    • Standard Stick (960 mm/37.8 in)
    • Front Shovel Capable
    • Front Shovel Capable – Pin-On
    • Thumb Ready (not available in all regions)
    • Certified Lifting Eye (optional in some regions)
  • Electrical
    • 12 Volt Battery
    • Software (machine and monitor)
    • Maintenance Free Battery
    • Signaling/Warning Horn
    • 12 Volt Power Socket
  • Operator Environment
    • Control Pattern Changer (optional in some regions)
    • No Travel Pedals and Hand Levers
    • Machine Security – Push to Start with Key Fob/Pass Code
    • Vinyl Suspension Seat
    • LED Front Lights
    • LED Front and Rear Lights
    • LED Boom Light
    • Mirrors Left and Right
    • Seat Belt Reminder System
  • Undercarriage
    • Steel Track (230 mm/9 in wide)
  • Boom, Stick And Linkages
    • Long Stick (1160 mm/45.7 in)
    • Front Shovel Capable – Dual Lock Manual Coupler
    • Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
    • 2nd Auxiliary Hydraulic Lines
    • Boom Lowering Check Valve
    • Stick Lowering Check Valve
    • Hydraulic Quick Coupler Lines (not available in all regions)
  • Electrical
    • Battery Disconnect
    • Product Link PL243 (regulations apply)
    • Product Link PLE643 (regulations apply)
    • Travel Alarm (standard in some regions)
  • Guarding
    • Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 PSA)
    • Polycarbonate Half Height Front Guard (Canopy only)
  • Other
    • Bio Oil Capable
    • Eco Drain
    • Water Jacket Heater
    • Heavy Counterweight

800 mm (32 in), 42 L (1.5 ft3) Pin On Ditch Cleaning Bucket

Width 31.5 in

Weight 89.3 lb

Capacity 1.5 yd³

View Details
Contact to purchase

A11 Auger For 1 Ton Mini Excavators

Drive Shaft Torque at Maximum Pressure 815 lb/ft

Drive Method Gerotor Motor - Direct Drive

Mounting Bracket Design 1 Ton Mini Excavator Pin On

View Details
Contact to purchase

300 mm (12 in), 23 L (0.8 ft3) Pin On Digging Bucket With Bolt-On Teeth

Width 11.8 in

Capacity 0.8 ft³

Weight 68.6 lb

View Details
Contact to purchase

600 mm (24 in), 57 L (2 ft3) Pin On Digging Bucket With Bolt-On Teeth

Width 23.6 in

Capacity 2 yd³

Weight 100.1 lb

View Details
Contact to purchase

B1 Non-Sillenced Hydraulic Hammer

Operating Weight - With Tool 183.2 lb

Energy Class 147.5 ft·lbf

Machine Class 1-2 Ton Mini Excavators

View Details
Contact to purchase
